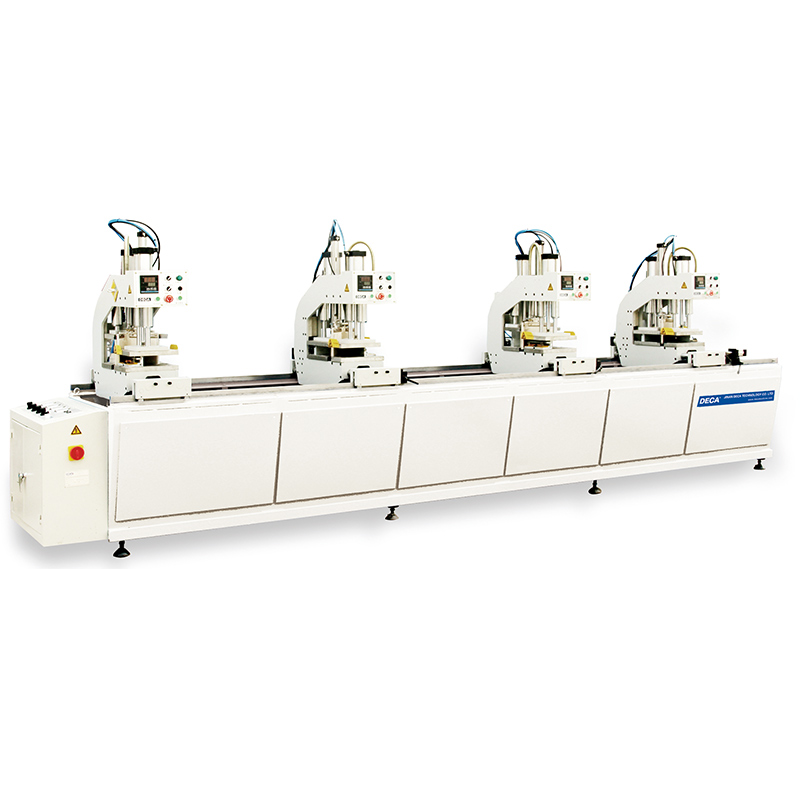

Four Head Welding Machine SHZ4-120×4500

Function:

Used for corner and mullion welding of PVC profile.

Features:

1.Four head can work separately or corporately, flexible combination.

2.PLC controls the welding action / program, high reliability.

3.Free angle welding of right machine head.

4.Parameters can be set to meet various profiles processing requirements.

5.High welding precision.

6.Adopt high quality electrical and pneumatically components with high reliability.

7.Good welding corner appearance.

Parameter:

Air Pressure: 0.5MPa~0.8MPa

Air Consumption: 80L/min

Input Voltage: 220V 50Hz

Input Power: 4.5KW

Welding Height: 20mm~120mm

Welding Width: 120mm

Welding Range: 400mm×400mm~4500mm×4500mm

Overall Dimension: 5400mm×1000mm×1700mm

Weight:1550kg
