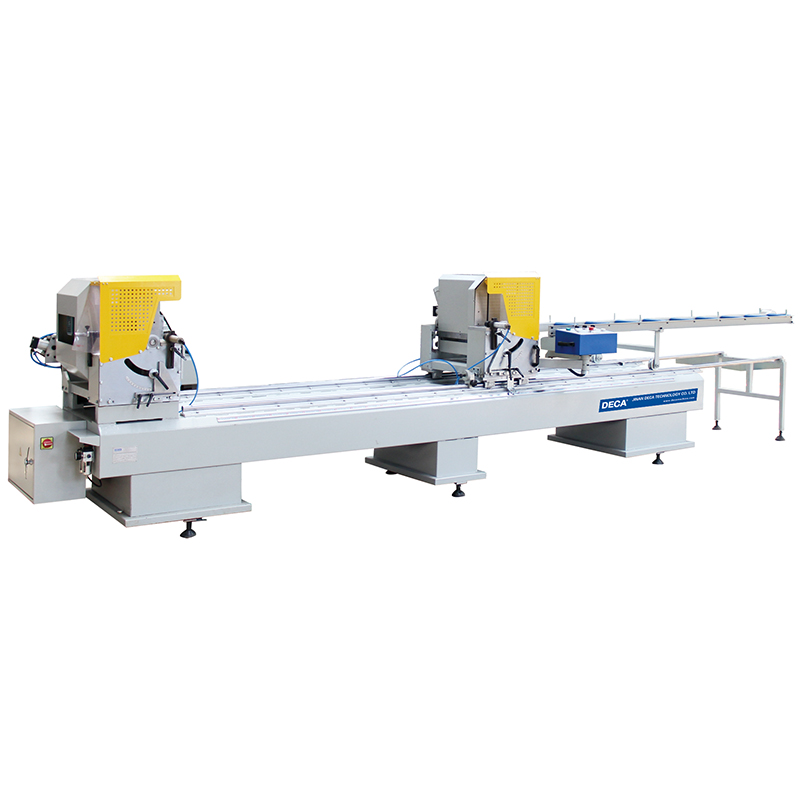

Double Miter Saw LJZ2A-450×3600

Function:

For 45°~90°plastic and Aluminium profile cutting.

Parameter:

Air Pressure:0.5MPa~0.8MPa

Air Consumption:50L/min

Input Voltage:380V 50Hz

Input Power:5.25KW

Spindle Rotary Speed:2800r/min

Cutting Length  Range:290mm~3600mm

Cutting Width:120mm

Cutting Height:120mm

Overall Dimension:6000mm×1300mm×1650mm

Weight:1200kg

Features:

1.Equipped with cutting angle fine adjustment device.

2.Straight line feeding type; the guide for machine body and feeding system adopt linear bearing system to ensure stable feeding and high cutting precision.

3.Optional: Machine head could adopt air-hydraulic damping cylinder to cut Aluminium profile.

4.Same shaft angle-changing structure for good surface cutting performance.

5.Profile supporter is available on the movable head.

6.Automatic cutting angle change for 45°and 90°.

7.One time two pieces of profile cutting (height of profile less then 60mm).

8.With short profile cutting device on left machine head can realize super short profile cutting.
