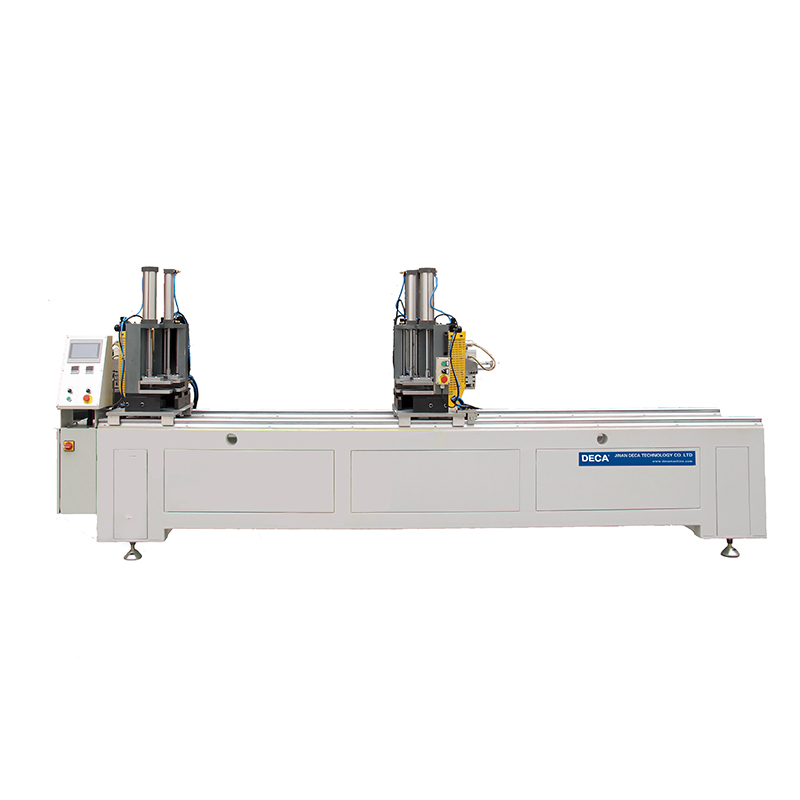

Two Head Seamless Welding Machine SHZ2HA-260*3500

Function:
Used for general profile and colored profile corner welding, and the micro-seam cleaning of colored profile

Parameter:

Operation Air Pressure: 0.6～0.8 MPa
Air Consumption: 40 L/min
Power Supply: 220V ～ 50Hz(Or on request)
Input Power: 3.5 kW
Welding range: 460mm～3960mm

Max. Welding height(mm): 260

Max. Welding Width (mm): 100mm
Overall Dimension: 4750 mm*1750mm*1100mm
Machine Weight: 760kg

Features:
1. It can be realized 0.2mm welding of colored PVC profile, and automatically clean the upper and lower sides after welding. That is ideally complete the cleaning of upper and lower in cleaning process.

2. Less than a minute for profile welding and cleaning; increase the efficiency.

3. all motion pair adopts linear bearing guide system, increases processing precision, ensure the reliability and stability of the machine.

4. The max. welding height reach to 260mm, and two pieces profiles welding (less than 120mm) at one time is available by change the double layer profile fixture
5. Adjustable positioning distance, heating distance and feeding distance, ensured the optimal welding quality.
6. Special profile fixture can be installed, which improves the appearance of welding products, welding strength increased by 20% .
7. Special Know-how technique which produces very high-quality color PVC windows and doors.
