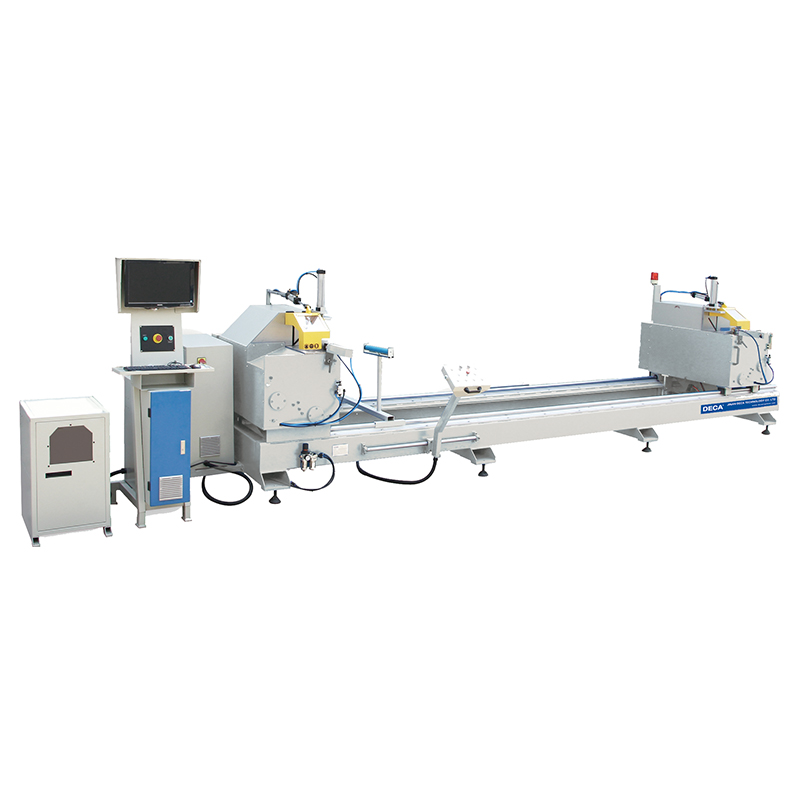

Double Miter Saw CNC LJZ2F-CNC-500×5000
Features:
1.The conversion of the angles 45 degree and 90 degree is automatic.
2.The range of the cutting is very large. The Max. cutting width can be 320mm, or you can cut 4 profiles with width below 60mm.
3.Have horizontal and vertical clamping system which can ensure the precision of positioning, and also can apply to clamping different profiles.
4.Safeguard covers on both cutting heads can protect the operator.
Function:
Used for PVC and aluminum profile cutting.
Parameter:
Air Pressure: 0.5MPa~0.8MPa
Air Consumption: 100L/min
Input Voltage: 380V, 50 Hz
Input Power: 8.2Kw
Max. Cutting Length: 5000mm
Min. Cutting Length: 450mm
Cutting Range: 320×80mm, 230×150mm
Motor Rotary Speed: 2800r/min
Saw Blade Specification: 500mm*4.3mm*30mm
Overall Dimension: 5850mm*1800mm*1600mm
Net Weight: 2000kg
Gross Weight:2300kg
Name of Part or Component | Brand |
Solenoid Valve | Festo |
Air Cylinder | EMC or Shanghai SXPC |
Low-voltage electric part | Schneider/Huanyu |
FRL | EMC or Shanghai SXPC |
Control Panel(Screen) | Omron/Siemens Touch Screen |
Servo Motor +Servo Driver | Panasonic（for Omron screen）；Rexroth of Bosch（For Siemens screen） |
Saw Blade | Japanese Brand, Hirono/Wagen |
Saw Blade Motor | Fangda |
Guide | ROUST or BOBO |
Features:
1.The conversion of the angles 45 degree and 90 degree is automatic.
2.The range of the cutting is very large. The Max. cutting width can be 320mm, or you can cut 4 profiles with width below 60mm.
3.Have horizontal and vertical clamping system which can ensure the precision of positioning, and also can apply to clamping different profiles.
4.Safeguard covers on both cutting heads can protect the operator.
5. Machine guide and head feeding adopt linear bearing system.
6. Reasonable structure of the whole machine and high processing precision which ensure the high precision of the finished product.
7. With head fine adjusting device.(For manual type and digital display type)
8. CNC control with auto length stop and high automation. (CNC model)
9. With high efficiency and cutting precision this machine is the ideal processing machine for high-grade window production.
