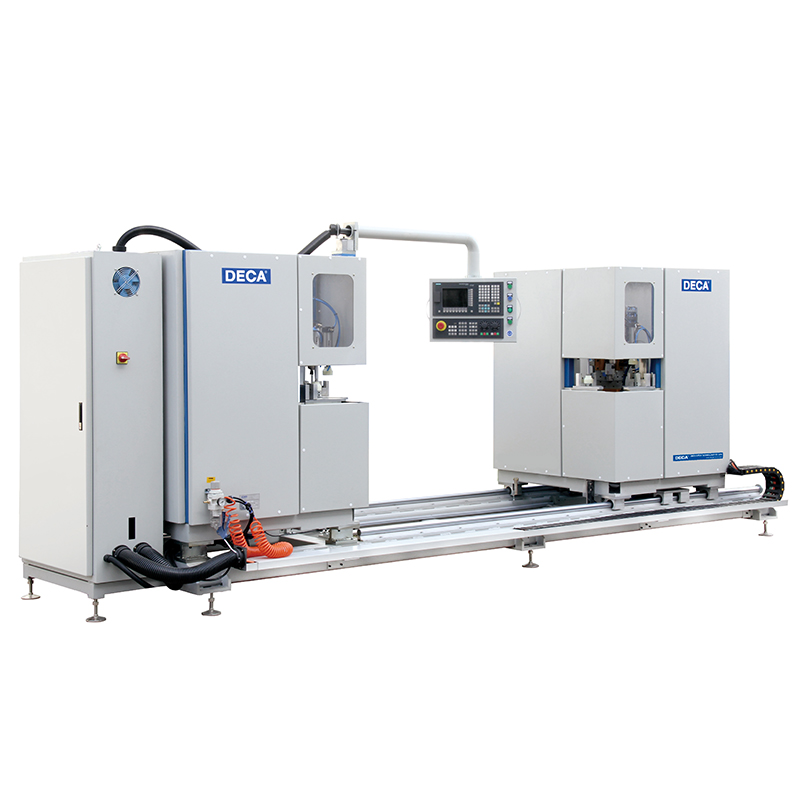

Double Head Corner Cleaning Machine CNC ADCF-200

Function:

It is used for cleaning the welded corners of PVC window and door.

Features:

1. High efficiency. Can complete cleaning four corners of the rectangle frame at two times.

2. Can clean the external vertical section, top/bottom surface, inner corner seam and gasket groove of welded corners on different types of profiles.

3. Unique design of super-strong machine head structure is to ensure the long time precision and stability.

4. The cleaning of seam in the gasket groove is done with high-speed motor for high precision and better cleaning result.

5. Can realize size error compensation for high precision.

6. Unique inner locating way is to ensure the accurate locating of workpiece.

7. The size of finished window is positioned by CNC control system for high precision and convenient operation.

8. Adopt well-known imported brands for servo drive system, CNC control system , solenoid valve and FRL etc. for reliable function and longer use life.

9. Can save many processing programs for different types of profiles.

10. Circular arc interpolation and oblique line interpolation can be realized; can ideally meet the requirement for fabricating high-quality window and door with different types of profiles.

11. Design of machine height conforms to ergonomic principle. It’s easy to operate.

Technical data:

Input Voltage: 380V, 50Hz

Input Power:  7.5KW

Air Pressure: 0.5~0.8MPa

Air Consumption: 60L/min

Processing Profile Height: 30~120mm

Processing Range of Welded Frame: 500~3000mm( Along the movable machine head)

Saw Blade Motor Speed: 18000rpm

Saw Blade Motor Power: 0.5kw*2

Overall Dimension: 5250mm150mm950mm

Weight: 2500kg
