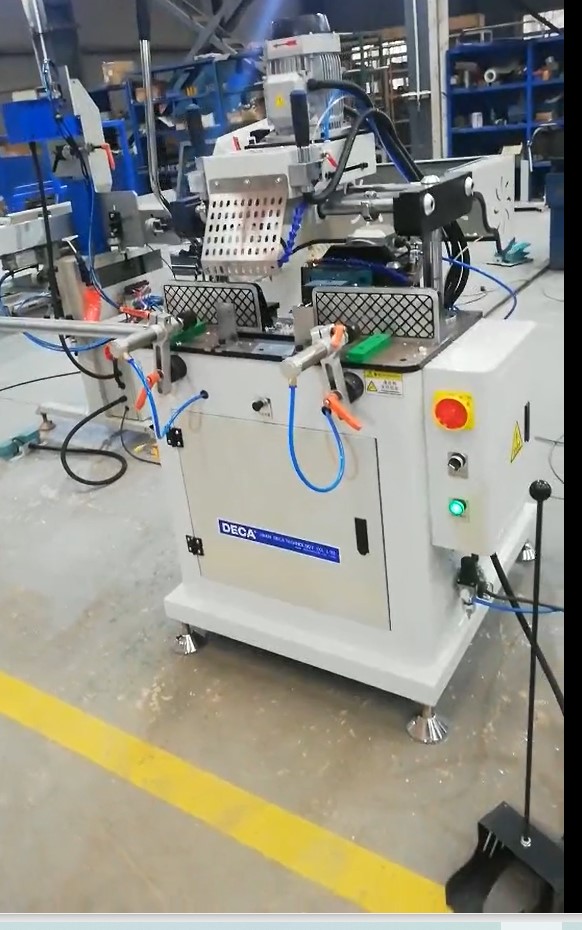

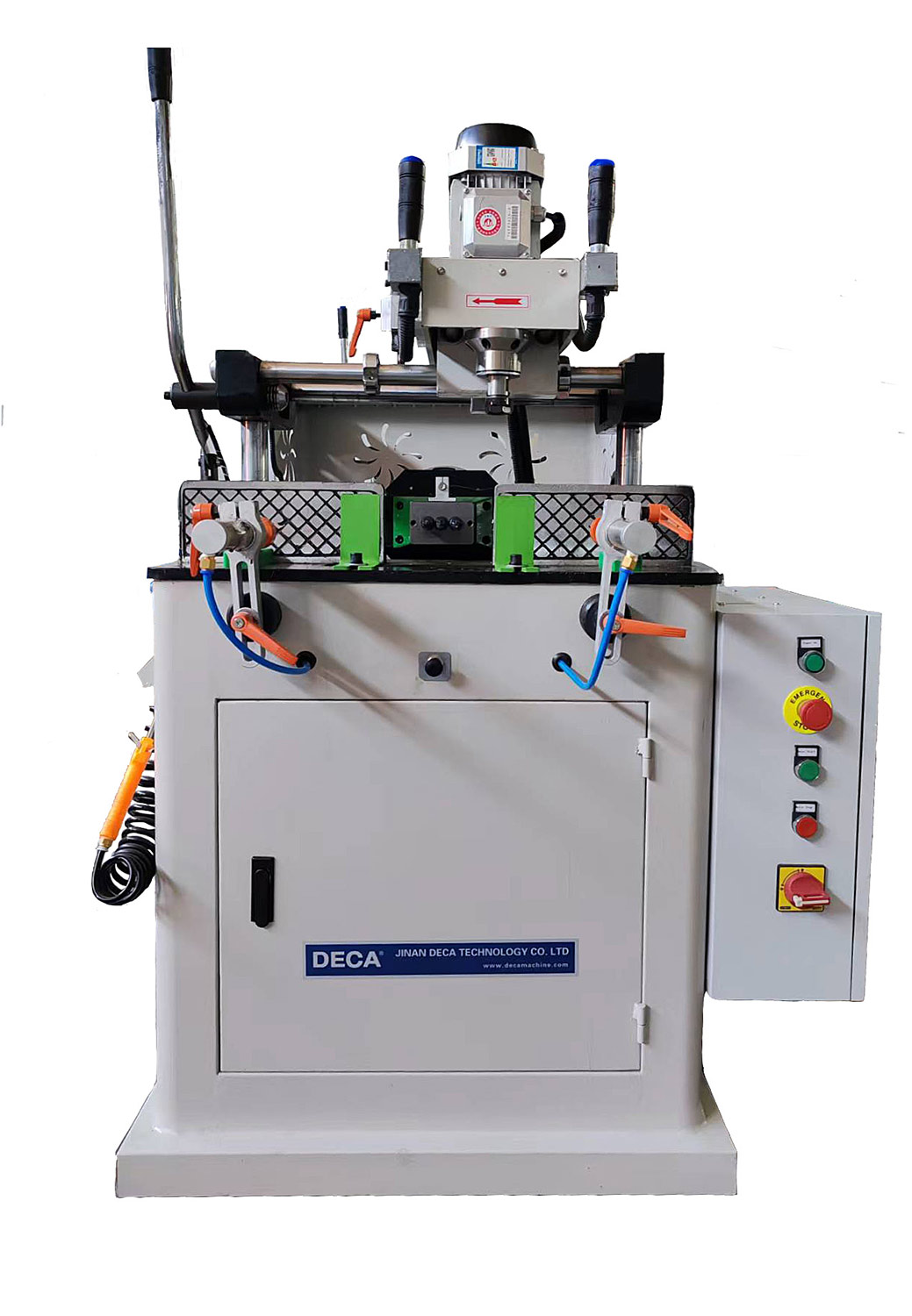

Lock Hole Machine SZSB-100

Features :
1. Formed by three-hole drill part (horizontal direction) and copy milling part (vertical direction)
2. The height of three-hole drilling can be adjusted easily

3. Three-hole drill designed behind and operated easily.

4. Adopt vertical axis to ensure the parallel precision of the three-hole drill
5. Adopt hydro-pneumatic actuator cylinder feeding to save labor.

6. Easy adjustment of the processing position

Contact Now E-Mail Telephone WhatsApp

Product Details

Function:

Milling all kinds of lock holes
Features :
1. Formed by three-hole drill part (horizontal direction) and copy milling part (vertical direction)
2. The height of three-hole drilling can be adjusted easily

3. Three-hole drill designed behind and operated easily.

4. Adopt vertical axis to ensure the parallel precision of the three-hole drill
5. Adopt hydro-pneumatic actuator cylinder feeding to save labor.

6. Easy adjustment of the processing position

Parameter:

Operation Air Pressure: 0.5～0.8(MPa)

Air Consumption: 20L/min

Input Voltage: 380 50Hz

Main-Shaft Revolution: 11200/910(r/min)

Input Power: 1.1 (kW)）,0.75(kW)

Three-hole Cutter Diameter: Φ12,φ10(mm)

Copy cutter diameter: Φ5, Φ8

Copy Milling Range: 90×290（mm）
