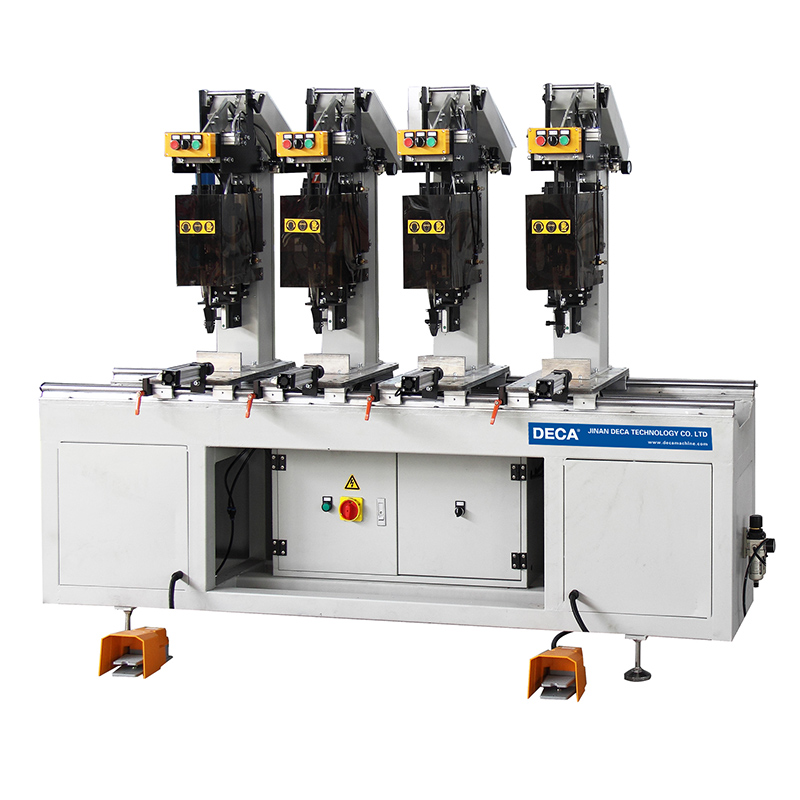

Four Head Screwing Machine ASD-400

Application:

Auto Screw Fastening Machine is applicable for connecting two workpieces with self tapping screws. Especially suitable for fastening the screws between PVC window and door profile and reinforcement steel inside the chamber.

Features:

1.Stepping pedal switch once can automatically complete the connection of profile and reinforcement steel without drilling the hole in advance.

2.Easy operation. One person can operate the machine. Can improve economic efficiency and production efficiency.

3. Adopt high torque electric motor with overload protection function to avoid the unstable running when using pneumatic motor with high air consumption. The motor will be overload protected automatically when tapping fails.

4. The design of whole machine refers to German standard.

5. Auto screw loading device is for easy and convenient operation and high efficiency.

6. Design of fast release of screws. The screw could be released quickly when tapping fails.

7.Quick change device for taping rod. It only takes 10 seconds to change the screwing rod.

8. With left and right side profile supporting stand, profiles could be loaded from both sides.

Main Technical Parameters:

Voltage:220V, 50Hz

Rated Power:2 kw

Max. Torque: 6Nm, 2400rpm

Compressed Air Supply：6-7bar

Screw Length：13-34mm

Shank Diameter： 3.0-4.5mm

Head Diameter： 6.5-8.7mm

Tapping Height:25~120mm

Profile width: ≤120mm

Outer dimension: 2200×580×1800mm (only size of machine body, not including the supporter stand.)

Weight:560kg
