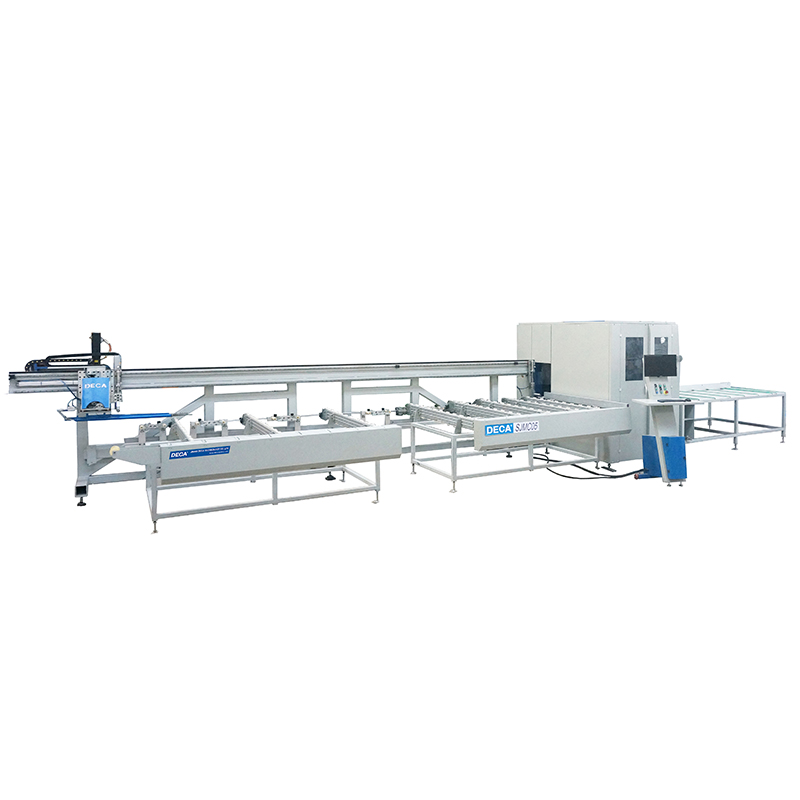

PVC Profile Cutting Center SJMC05

Application:

This machine is used for accomplish the automatic length cutting of 45°,V notch as well as 90°of mullion . It is suitable for mass production of high-grade window and door.

Features:

1.It can automatically download the optimized cutting data; no need manual input and adjustment.

2.Automatically accomplish profile holding, feeding and cutting. Automation is high.

3.Cycle loading system, highly improves the production efficiency.

4.High-speed feeding system for high efficiency.

5.High precision spindle motor for high processing quality.

6.Linear motion pair rail is for good precision of finished item.

7.3-axis control; high automation.

8.All sets of imported brand control system for high processing precision.

9.Fully adopt imported high quality electric and pneumatic parts for good stability and reliability.

10.Can communicate with upper computer; select the processing task automatically and flexibly realize CAD/CAM.

11.Barcode printer is optional which can print the label with material information in time to accomplish identification of processing information and material management. (Software support)

12.With automatic unloading system. Operation is simple and convenient.

13.With automatic waste profile collection system, to keep the working environment clean and tidy.

14.Worktable and the machine height are designed by ergonomic principle, to reduce labor intensity.

15.Large 17-inch control screen, together with the graphical interface, simple and intuitive operation.

16.Suitable for volume and high-quality production of complex window type.

Technical Data

Air Pressure: 0.5～0.8MPa

Air Consumption:400L/min

Voltage: 380V  50Hz

Power: 15.5kW

Saw Blade Rotation Speed: 3000r/min

Saw Blade Specification: Φ500×4.3×Φ30mm

Cutting Width: max 120mm

Cutting Range: max 6000（ or on request of customer）

Cutting Height Profile: ≤120mm   V notch depth≤60mm

Min. Cutting Length Profile: 300mm

Outer Dimension: 12500mm×4100mm×2100mm

Weight: 3600kg
