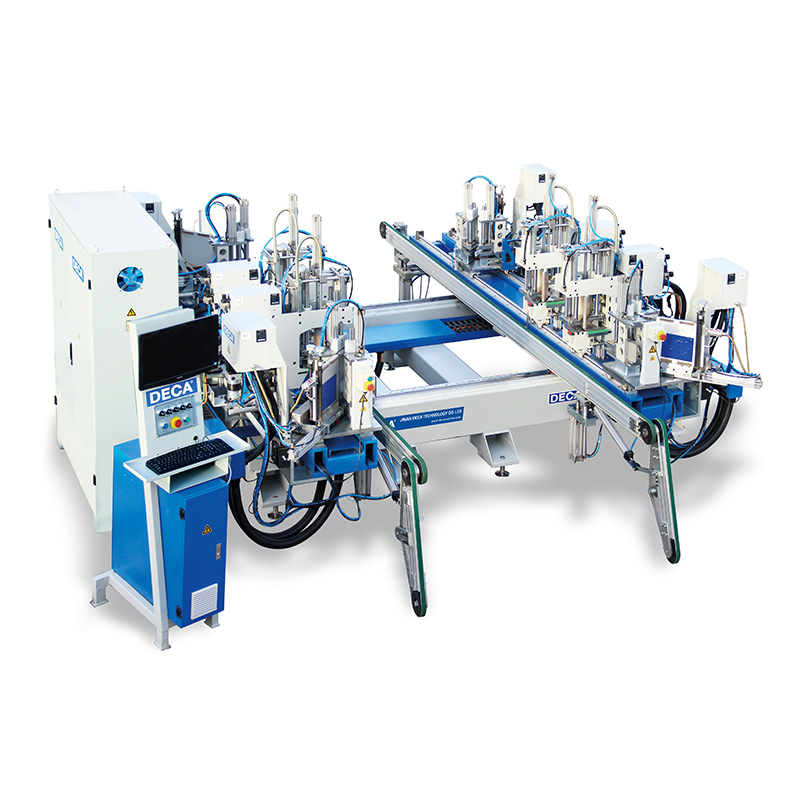

Horizontal Eight Point Welding Machine CNC SHP8W-CNC-3000B

Function:

Welding unit for complex windows system solution. It can weld the frame of complex windows. The welding efficiency could be increased by 5-6 times.

Features:

1.Welding Heads adopt special rigidity design with compact structure to increase the welding range and suitable for the complex window production mode.

2.Horizontal Structure with strengthened rigidity design for stable operation.

3.The moving part of welding heads adopt linear bearing motion guide to ensure the high precision for the finished frame.

4.Adopt particular surface positioning system which can ensure the high welding precision.

5.Proprietary technology which increases the strength of the welded corners.

6.Heating time starts when the heating plates reach at the right position, which meet the criterion of European welding.

7.Automatic positioning for four types of profiles on V welding machine heads. Easy to adjust.

8.2mm general welding and 0.2mm seamless welding are adjustable.

9.Teflon could be changed with the roller device to shorten the changing time.

10.Controlled by seven-axis CNC system which can compensate the tolerance of the size, and increase the precision of the welding size.

11.The whole machine adopts high quality electric, pneumatic and mechanic parts which make it more reliable.

12.With high speed automatic conveying system to increase the production

13.It is convenient to connect this welding machine with corner cleaning machine to be welding/cleaning line.

14.It is especially suitable for fabricating high-grade PVC window and door and being used in some big window and door factory with volume production. efficiency.

15.Worktable and body height are designed by ergonomic principles to reduce labor intensity.

16.17-inch super-large control screen with graphical interface for simple and intuitive operation.

Main Technical Parameters:

Voltage: 380V    50Hz (3phase, 4 line)

Input Power: About 16.5kW

Air Pressure: 0.5～0.8MPa

Air Consumption: 150L/min

Welding Height: 35～120mm (mullion 55~120mm)

Max. Welding Width: ≤120mm(Corner welding); ≤90mm(mullion welding)

Welding Range: 480mm×950mm～1800mm×3000mm

Outer Dimension:4000mm×7700mm (including the conveying table 3200mm)×2000mm

Weight: 4000kg
