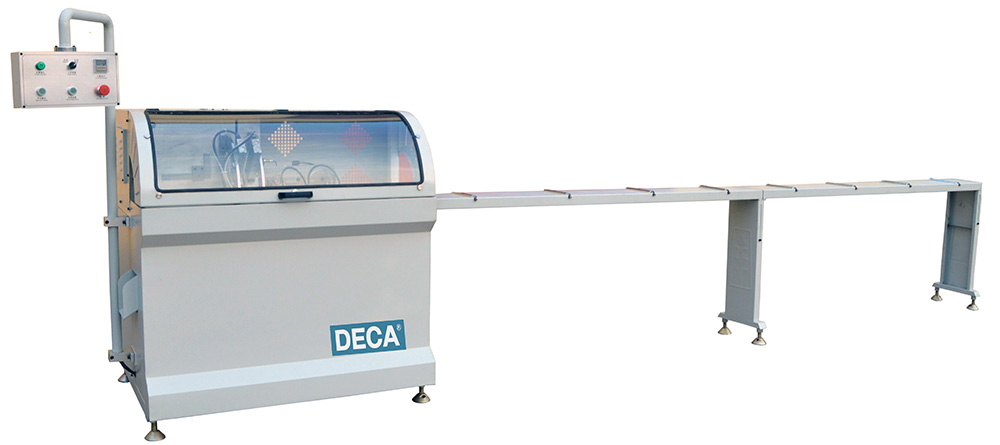

Coner Connector Cutting Machine for Aluminum Window and Door LJJZ-450
Features:
1.Easy operation; reliable function; advanced technology and convenient maintenance.
2.Adopt carbide saw blade for higher speed cutting , high efficiency and processing precision.
3.Feeding movement adopts linear square rail for small resistance and high precision.
4.The feeding mechanism adopts automatic feeding system, stable and reliable, high efficiency.
5.High Automation;
6.High automation Clip, saw blade moving adopts pneumatic control for convenient operation, safe and reliable, high working efficiency.
Function:
Used for cutting corner connector of Aluminum Window and Door.
Technical Parameter:
Air pressure: 0.5~0.8Mpa
Air Consumption: 20L/Min
Input Voltage: 380V, 50Hz
Motor Power: 2.2KW
Main Shaft Rotation Speed: 2800r/min
Automatic feed profile length: 5～580mm
Cutting Width*height: max120×120 mm
Cutting Length: no limit when choose manual mode
Saw Blade Feeding Speed: 0-3m/min
Saw Blade Specification: ø450×ø30×3.8×Z120
Flatness of cutting Surface: ≤0.10mm
Perpendicularity of cutting Surface: ≤0.1mm
Roughness of Cutting Surface: Ra12.5μm
Outer Dimension: 5670 mm×1770mm×1840mm mm
