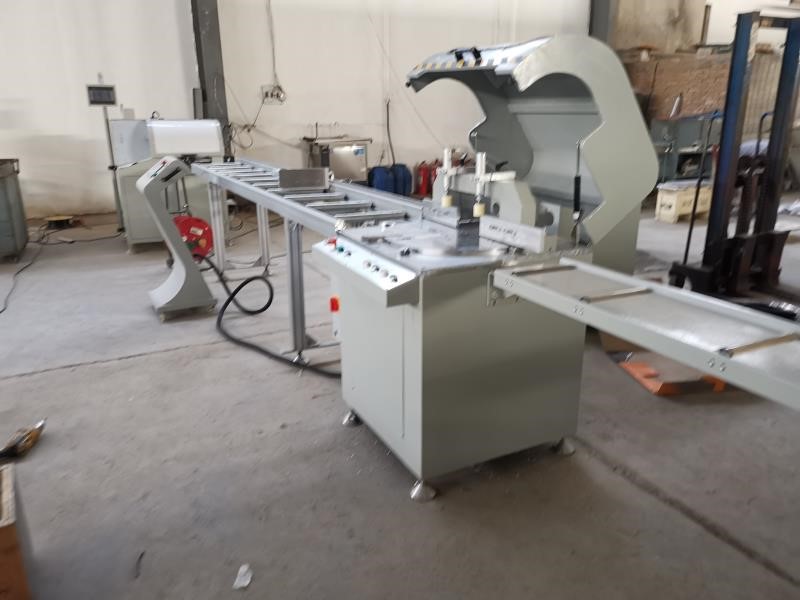

Single Head Cutting Machine CNC LJZB-CNC-400M

Application：

This machine is mainly used for cutting aluminum curtain wall, window profile, and PVC profile as well.

Features:

1.Use carbide saw blade for high linear velocity and high cutting precision.

2.The saw blade comes below to up when cutting.

3.This machine can be equipped with positioning stand and can also be equipped with CNC unit on customer’s request for higher positioning precision.

4.The worktable can be turned left and right between (-15°)~90°~(+15°).

Main Technical Parameters：

Input Power: 380 V  50 Hz，3 phase

Power: about 1.5 kW

Air Pressure: 0.5~0.8 MPa

Air Consumption: 30 L/min

Specification of Saw Blade: φ400×3.5×φ30×80T

Rotation Speed of Saw Blade: 2840 r/min

Cutting Angle: (-15°)~90°~(+15°)

Angle Tolerance: ±2′

Cutting Width: 165 mm( when cutting 90°, Max.)

Cutting Height: 120 mm(When cutting 90°, Max. )

Overall Dimension（L×W×H): 850×1100×1500 mm

Weight: About 300 kg
