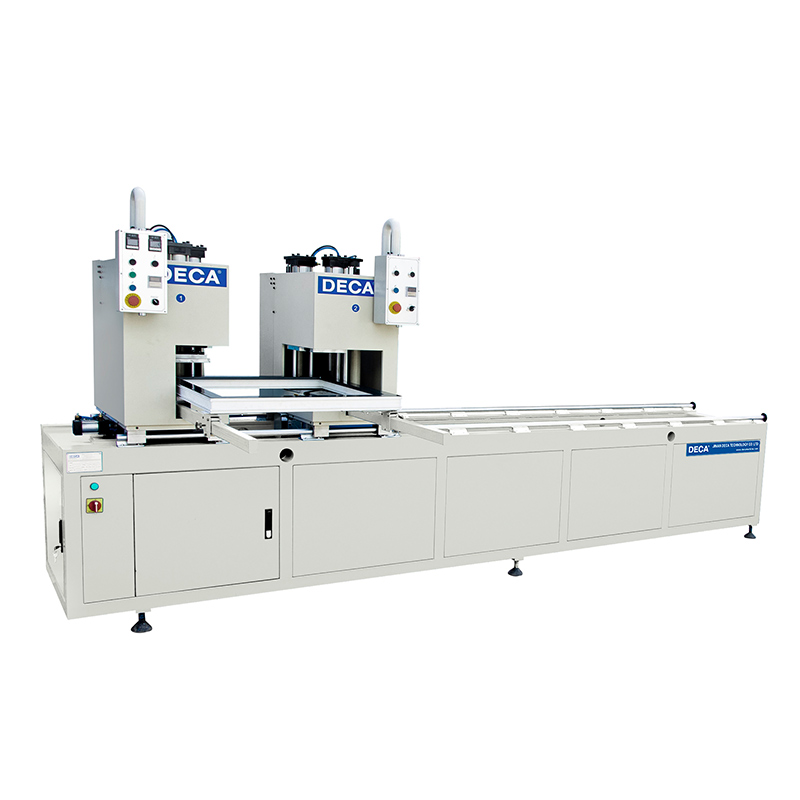

Two Head Welding Machine SHZ2B-165 x 3500

Function:

Used for top grade white profile and color profile welding.

Features:

1.The two head can work separately or corporately to make the welding.

2.2mm general welding and 0.2mm color profile seamless welding, is available and can be adjusted manually.

3.Super large welding range, wide adaptability.

4.Variable angle welding function in the right head.

5.The two heads adopt strong rigidity design which can ensure long time work stability.

6.The lathe bed and the heads adopt guide linear bearings, high precision.

7.Can install special fixture of the welding to increase welding strength and beautify the surface of the welding.

8.It has the clamp limit system, and should be operated by two hands to ensure the safety of the operator.

9.Adopt high quality electric, gas parts, which can ensure the long time stability.

Parameter:

Air Pressure: 0.6MPa~0.8MPa

Air Consumption: 40L/min

Input Voltage: 220V 50Hz

Input Power: 4.4KW

Range of Welding      Height:20mm~200mm

Max. Welding Width:165mm

Welding Range:430mm~3500mm

Overall Dimension:4220mm×1660mm×1800mm

Weight:1300kg
